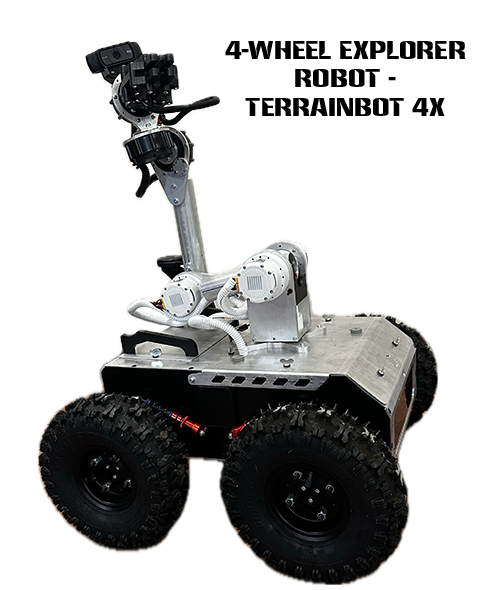

The TerrainBot 4X is an advanced 4-wheel drive robotic platform designed for challenging terrain exploration and precise manipulation tasks. Featuring independent suspension, a 6-DOF robotic arm, and comprehensive sensor suite, it excels in both autonomous and manual operations across diverse environments.
Physical Specifications
Dimensions:
- Length: 61 cm
- Width: 55 cm
- Height: 57 cm (body)
- Height with Extended Arm: 103 cm
Weight: 28 kg (including battery)
Construction Material:
- Chassis: 6061-T6 aluminum alloy
- Body Panels: Impact-resistant composite
Drive System
Wheel Configuration:
- 4x4 independent drive
- Wheel Size: 28 cm diameter
- All-terrain tire compound
- Heavy-duty wheel hubs
Motor System:
- 4x 80 W brushless DC motors
- Individual motor controllers
- Built-in encoders
- Regenerative braking capability
Performance:
- Maximum Speed: 2.5 m/s
- Climbing Ability: 35-degree slopes
- Ground Clearance: 12 cm
- Turning Radius: 0.8 m
Suspension System
Type: Independent
Features:
Robotic Arm
Configuration: 6-DOF arm with center mount
Specifications:
- Reach: 65 cm
- Payload: 2 kg at full extension
- Base Rotation: 360° continuous
- Repeatability: ±2 mm
- Joint Properties:
- Absolute position encoding
- End-Effector Options:
- Standard parallel gripper
- Quick-change tool interface
- Camera/sensor mount
- Specialized tool attachments
Sensor Suite
Visual Systems:
- Main Navigation Camera:
- Diagonal field of view (dFoV): 78°
- Max Resolution: 1080p/30 fps - 720p/ 30fps
- Arm-Mounted Camera:
- Diagonal field of view (dFoV): 78°
- Max Resolution: 1080p/30 fps - 720p/ 30fps
- Auxiliary Cameras:
- Wide-angle rear view
- Side-mounted navigation cameras
LIDAR System:
- 360°x90° scanning LIDAR
- Range: 0.05-30 meters
- Resolution: &PlusMinus 2.0cm
- Update Rate: 250 Hz
Additional Sensors:
- 9DOF IMU
- GPS/GNSS receiver
- Wheel encoders
- Current sensors
- Proximity sensors
Computing and Control
Main Computer:
- NVIDIA Jetson Xavier NX
- 16GB RAM
- 512GB NVMe SSD
Real-time Controller:
- Custom microcontroller array
- 1kHz control loop frequency
Operating System:
- ROS 2 middleware
- Open Architecture control software
Autonomous Capabilities
Navigation:
- GPS waypoint following
- Obstacle avoidance
- Terrain adaptation
- Path optimization
Computer Vision:
- Object detection
- Surface analysis
- Visual odometry
Mission Planning:
- Autonomous exploration
- Task sequencing
- Failure recovery
Power System
Battery:
- Type: Lithium Iron
- Voltage: 22.2V
- Capacity: 20Ah
- Hot-swappable design
Power Management:
- Intelligent power distribution
- Power monitoring system
- Sleep mode capability
Operating Time:
- Standard Use: 3 hours
- Heavy Use:2 hours
- Charging Time: 2-3 hours
Communication
Wireless:
Optional radio module for long-range
Protocols:
- Delayed telemetry handling
- Loss-tolerant command system
Environmental Specifications
Operating Environment:
- Temperature: -10°C to 50°C
Storage Environment:
- Temperature: -20°C to 60°C
User Interface
Control Options:
- Tablet-based controller
- Laptop interface
- MATLAB / Simulink / Unity controller
- Web-based interface
Features:
- Real-time video feeds
- Sensor data visualization
- Mission planning interface
- System diagnostics
Safety Features
Operational Safety:
- Emergency stop system
- Obstacle detection
- Tip-over prevention
- Motor current limiting
System Protection:
- Thermal monitoring
- Voltage protection
- Impact detection
- Fault detection and handling
Additional Features
Data Logging:
- Sensor data recording
- Mission telemetry
- System diagnostics
- Performance metrics
Maintenance:
- Modular component design
- Easy access panels
- Field-serviceable parts
- Diagnostic interface
Applications
Primary Uses:
- Outdoor exploration
- Industrial inspection
- Research and development
- Search and rescue support
Secondary Uses:
- Educational purposes
- Technology demonstration
- Environmental monitoring
- Agricultural inspection
|
